Guardex M/I Series Flexible Shaft Drive Couplings

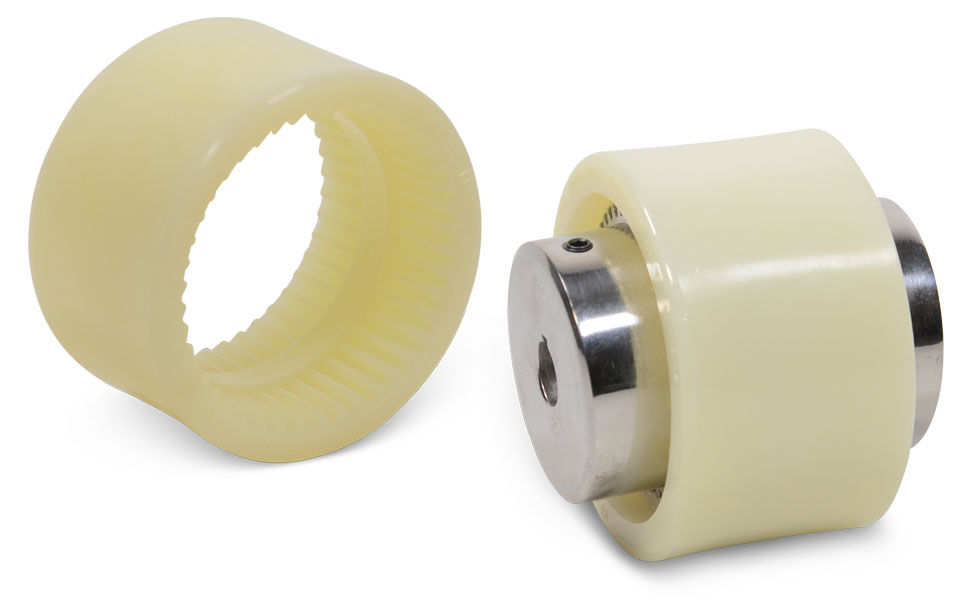

GUARDEXTM is a double cardanic curved-tooth gear coupling. This three-piece design is able to compensate for axial, radial, and angular shaft misalignment. The coupling consists of a nylon sleeve and two steel hubs. As a result, creates a maintenance free product and doesn’t require any further lubrication. It fits electric motor driven applications up to 300HP. They are perfectly interchangeable with other popular European designs.
California Proposition 65 Warning: This product contains chemicals known to the State of California to cause cancer and/or birth defects or other reproductive harm.
Features
- 1/2 HP - 294 HP
- 1/4˜ to 3-3/4˜ Bores
- Double Crowned Tooth Gear Coupling
- Nylon Sleeves, Steel Hubs
- Blind Assembly
- Free Axial Travel
- Splined Bores, Metric Bores
