Multi Beam Couplings | Guardian Couplings

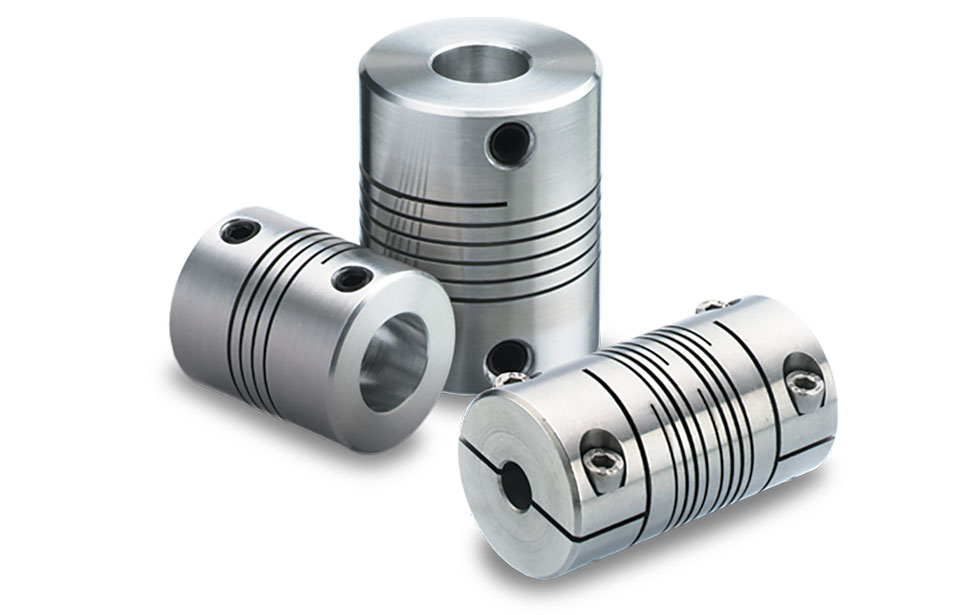

These general purpose, multi-beam couplings will readily accommodate any combination of axial motion and angular & parallel misalignment but should be used with caution if low bearing loads are desirable. The three start helical-cut design provides higher torque capability and greatly reduced wind-up when compared to single beam couplings. The 6 beam version provides greater misalignment capability but reduced torque accuracy when compared to the 3 beam version.

The couplings are available in aluminium and stainless steel to suit various environments.

Product Features

  • Torsionally rigid design
  • Zero backlash
  • No moving parts
  • Single beam simple coupling compatible with industry standard types
  • 3-Beam single stage for increased torsional stiffness
  • 6-Beam two stage for torsional stiffness and increased radial compliance
  • Step Beam for low inertia, electrical isolation, low cost
Click on image below to download pdf. To order hard copies of literature click here.
